FM 050 - SSI Module - 050-1BS00
Det smarta och moderna I/O-systemet
Översikt

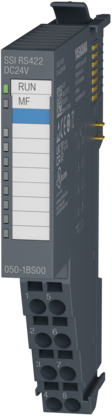

FM 050 - Function Module - 050-1BS00
Ordercode: 050-1BS00
- SSI - Encoder, master or slave mode
- Encoder frequency 125 kHz...2 MHz
- μs time stamp for encoder value
- Comparison function
- Alarm function
- Diagnostic function
Teknisk data
- Inkommande spänningsförsörjning
- x Nej
- Input Voltage
- x Nej
- Current Consumption
- x Nej
- Max. current drain at backplane bus
- x Nej
- Max. current drain load supply
- x Nej
- Current consumption from backplane bus
- 85 mA
- Current consumption from load voltage L+ (without load)
- x Nej
- Power Loss
- 1 W
- Number of inputs (digital)
- x Nej
- Rated load voltage (digital)
- x Nej
- Current consumption from load voltage L+ (without load)
- x Nej
- Signal logic input (digital)
- x Nej
- Input characteristic curve (digital)
- x Nej
- Initial data size (digital)
- x Nej
- Number of outputs (digital)
- x Nej
- Rated load voltage (digital output)
- x Nej
- Current consumption from load voltage L+ (without load)
- x Nej
- Signal logic output (digital)
- x Nej
- Output data size (digital)
- x Nej
- Number of inputs (analog)
- x Nej
- Rated load voltage (analog)
- x Nej
- Current consumption from load voltage L+ (without load)
- x Nej
- Voltage inputs (analog)
- x Nej
- Current inputs (analog)
- x Nej
- Resolution in bit
- x Nej
- Measurement principle
- x Nej
- Basic conversion time
- x Nej
- Initial data size
- x Nej
- Number of outputs (analog)
- x Nej
- Output voltage ranges
- x Nej
- Output current ranges
- x Nej
- Resolution in bit (analog)
- x Nej
- Conversion time (analog)
- x Nej
- Output data size (analog)
- x Nej
- Number of counters
- x Nej
- Counter width
- x Nej
- Maximum input frequency
- x Nej
- Maximum count frequency
- x Nej
- Maximum count frequency
- x Nej
- Maximum count frequency
- x Nej
- Maximum count frequency
- x Nej
- Number of channels
- x Nej
- Input voltage (rated value)
- x Nej
- Power stage
- x Nej
- PWM frequency
- x Nej
- Type of encoder
- x Nej
- Encoder frequency
- x Nej
- Encoder resolution (internal)
- x Nej
- Control type
- x Nej
- Terminal voltage max.
- x Nej
- Terminal current max.
- x Nej
- Total current per module, max.
- x Nej
- Number of clamps
- x Nej
- Binding of potential
- x Nej
- Point-to-point protocol
- x Nej
- Encoder Supply: Number of outputs (L+n)
- x Nej
- Rated output current
- x Nej
- Port mode
- x Nej
- Load memory, integrated
- x Nej
- Work memory, integrated
- x Nej
- Work memory, maximal
- x Nej
- Memory card slot
- x Nej
- Racks, max.
- x Nej
- Modules per rack, max.
- x Nej
- Fieldbus
- x Nej
- Connector
- x Nej
- Topology
- x Nej
- Transmission speed, max.
- x Nej
- Address range inputs, max.
- x Nej
- Address range outputs, max.
- x Nej
- Material
- PPE / PPE GF10
- Mounting
- Profile rail 35 mm
- Width
- 12.9 mm
- Height
- 109 mm
- Depth
- 76.5 mm
- Net weight
- 58 g
- Gross weight
- 73 g
- Certifications
- UL certification, KC certification, UKCA certification, ChinaRoHS certification
- Safety protocol
- x Nej
- Safety requirements
- x Nej
- Circuit monitoring
- x Nej
- Max. operating temperature
- 60 °C
