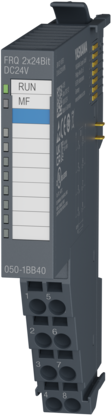

FM 050 - Frequency measurement - 050-1BB40

• Inkommande spänningsförsörjning
• x Nej

• Input Voltage
• x Nej

• Current Consumption
• x Nej

• Max. current drain at backplane bus
• x Nej

• Max. current drain load supply
• x Nej

• Current consumption from backplane bus
• 35 mA

• Current consumption from load voltage L+ (without load)
• x Nej

• Power Loss
• 0.5 W

• Number of inputs (digital)
• 2

• Rated load voltage (digital)
• DC 20.4 - 28.8 V

• Current consumption from load voltage L+ (without load)
• 5 mA

• Signal logic input (digital)
• x Nej

• Input characteristic curve (digital)
• IEC 61131-2, type 1

• Initial data size (digital)
• 160 bit

• Number of outputs (digital)
• x Nej

• Rated load voltage (digital output)
• x Nej

• Current consumption from load voltage L+ (without load)
• x Nej

• Signal logic output (digital)
• x Nej

• Output data size (digital)
• 96 bit

• Number of inputs (analog)
• x Nej

• Rated load voltage (analog)
• x Nej

• Current consumption from load voltage L+ (without load)
• x Nej

• Voltage inputs (analog)
• x Nej

• Current inputs (analog)
• x Nej

• Resolution in bit
• x Nej

• Measurement principle
• x Nej

• Basic conversion time
• x Nej

• Initial data size
• x Nej

• Number of outputs (analog)
• x Nej

• Output voltage ranges
• x Nej

• Output current ranges
• x Nej

• Resolution in bit (analog)
• x Nej

• Conversion time (analog)
• x Nej

• Output data size (analog)
• x Nej

• Number of counters
• 2

• Counter width
• 24 bit

• Maximum input frequency
• 600 kHz

• Maximum count frequency
• 600 kHz

• Maximum count frequency
• 600 kHz

• Maximum count frequency
• 600 kHz

• Maximum count frequency
• 600 kHz

• Number of channels
• x Nej

• Input voltage (rated value)
• x Nej

• Power stage
• x Nej

• PWM frequency
• x Nej

• Type of encoder
• x Nej

• Encoder frequency
• x Nej

• Encoder resolution (internal)
• x Nej

• Control type
• x Nej

• Terminal voltage max.
• x Nej

• Terminal current max.
• x Nej

• Total current per module, max.
• x Nej

• Number of clamps
• x Nej

• Binding of potential
• x Nej

• Point-to-point protocol
• x Nej

• Encoder Supply: Number of outputs (L+n)
• x Nej

• Rated output current
• x Nej

• Port mode
• x Nej

• Load memory, integrated
• x Nej

• Work memory, integrated
• x Nej

• Work memory, maximal
• x Nej

• Memory card slot
• x Nej

• Racks, max.
• x Nej

• Modules per rack, max.
• x Nej

• Fieldbus
• x Nej

• Connector
• x Nej

• Topology
• x Nej

• Transmission speed, max.
• x Nej

• Address range inputs, max.
• x Nej

• Address range outputs, max.
• x Nej

• Material
• PPE / PPE GF10

• Mounting
• Profile rail 35 mm

• Width
• 12.9 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 55 g

• Gross weight
• 70 g

• Certifications
• UL certification, KC certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• x Nej

• Safety requirements
• x Nej

• Circuit monitoring
• x Nej

• Max. operating temperature
• 60 °C
